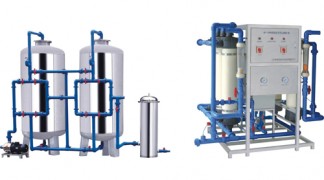

Ultrafiltration Water Treatment System

Ultrafiltration Water Treatment System
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.
Inquire Now


Mineral Water Treatment System / Ultrafiltration Water Filter

Mineral Water Treatment System / Ultrafiltration Water Filter
Ultrafiltration(UF) membrane functions as the core part of the whole system to produce mineral water. Ultrafiltration (UF) membrane serves as a molecular sieve. It separates dissolved molecules by passing a solution through an infinitesimally fine filter. The ultrafilter is a tough, thin, selectively permeable membrane that retains most macromolecules above a certain size, including colloids, microorganisms and pyrogens. Smaller molecules, such as solvents and ionized contaminants, are allowed to pass into the filtrate.
Inquire Now


Mineral Water Treatment System

1. Definition of mineral water
Mineral water is water containing minerals or other dissolved substances like calcium, magnesium, sodium, potassium, silica and bicarbonates, which is healthy to drink.

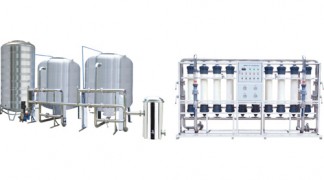

Our water treatment systems are customized and designed to meet the local water conditions and flow rate requirement. The mineral water treatment equipment utilizes a quartz sand filter, active carbon filter, and PP filter for the treatment of raw water. This process not only removes large particles, odor, color, and some bacteria, but protects back-end UF membranes, which helps prolong the life of the equipment.

The ultrafiltration(UF) membrane functions as the core part of the whole system to produce mineral water. Ultrafiltration (UF) membrane serves as a molecular sieve. It separates dissolved molecules by passing a solution through an infinitesimally fine filter. The ultrafilter is a tough, thin, selectively permeable membrane that retains most macromolecules above a certain size, including colloids, microorganisms and pyrogens. Smaller molecules, such as solvents and ionized contaminants, are allowed to pass into the filtrate. Thus, UF provides retained retentate that is rich in large molecules and a filtrate that contains few, if any, of these molecules.

2. Filter material of Ultrafiltration Water Treatment System
When choosing filter materials, we offer tailor-made solutions in view of corrosion, pressure, vibration and temperature, as per raw water conditions of customers. For example, if TDS of raw water is too high, fiber glass filter tank will be recommended in order to optimize the whole water treatment system.

3. Advantages of Ultrafiltration Water Treatment System
1. Mineral water treatment equipment is able to effectively remove most particles, pyrogens, microorganisms, and colloids that are above rated sizes. Some calcium, magnesium, sodium, potassium, silica and bicarbonates are remained in water.
2. It produces high quality water with the least amount of energy.
3. We provide tailor-made mineral water treatment equipment in accordance with raw water condition and your specific requirements.

4. The water treated by our mineral water treatment equipment tastes sweet.
Specializing in manufacturing Ultrafiltration Water Treatment System in China, Angel Drinking Water Equipment Company provides a range of water purification equipment with complete models. Meanwhile, we also provide water bottling equipment, water filling equipment, wrap shrink packaging machine, and more. Our drinking water equipment has received CE, ETL, UL, and BSI certificates, and is now popular in over 30 countries and regions, such as Mexico, Australia, Canada, Indonesia, India and France, to name a few. If you are in need of the drinking water equipment, please feel free to contact us and try our products. We at Angel are confident that you will be satisfied with your purchase.

What is Ultrafiltration?

Ultrafiltration is used to treat drinking water:it improves the quality and shelf life of the water.Ultrafiltration is using hollow fiber filtering technology, with three levels of pretreatment filtering to remove impurities in the water; ultrafiltration pores less than 0.01 microns, can be completely filtered water, rust, bacteria colloidal and other harmful substances, retain the water on the human body useful trace elements and minerals.

Ultrafiltration principle

Ultrafiltration is a membrane separation technology, i.e., under a certain pressure,made the small molecules of solute and solvent through certain pore size special membrane,super and macromolecular solute impermeable membrane,left side.
Ultrafiltration principle is a membrane separation process principles, ultrafiltration using a pressure activated membrane, in the external driving force ( pressure ) under the effect of colloidal particles in water interception, and the relatively higher molecular weight material, and water and small solute particles through a membrane separation process. Through the membrane surface of the microporous filtering may be cut-off molecular weight of 3×10000 – 1×10000 material. When the water to be treated by external pressure to flow through the membrane surface, the water molecules and the molecular weight of less than 300 – 500 of the solutes through the membrane, rather than a hole of the membrane microparticles, large molecules such as sieving action are retained, thereby allowing the water to be purified. That is to say, as the water passes through the membrane, the water containing colloidal silica to remove most, at the same time can remove large amounts of organic matter.

Design of ultrafiltration water treatment system

Water source: Physical and chemical indicators have reached the standard of local water purification
The quality of raw water: According to water test report
Water quality: The barrels / bottled water purification standards
Description of the Whole system
Operating system: (24 hours) Working
Water supply: Continuous water supply
Mode of operation: Interlock control system,Some Part manual operation

Flow of the mineral water treatment equipment

Design: from the entrance to the installation of water purification water purification equipment exports
Configuration of the System
Water pre-treatment system: Quartz sand filters, Activated carbon filters, Precision filters;Chemical dosing machine.
Main filtration system: Consists by hollow ultra filtration device
Supporting of the mineral water treatment systems: The electrical control system.
Water treatment system installed on the basic requirements of the external
Supply & Drain system:Supply auxiliary equipment to the water treatment room, water pressure ≥0.2 Mpa, water usage: 4M3 / h, there should be room to leakage and drainage gutter.
Electronic Supply:Water treatment rooms set up within the distribution box, the total power capacity of 1 KW;

The device configuration and performance

SUS304 Raw water tank (aseptic tank)
If the booster pump direct extraction pipe water,May because of lack of water flow and the instability pressure lead to damage
the pump or affect the normal operation of the system, Use one raw water tank to offer water can advoid that happen.
The raw water tank with built-in water stainless steel ball valve and liquid level controller, large equipment need a water inle
of electric butterfly valve.
1.Inlet valve function is control of raw water into the water, make sure the system can timely replenishment water.
2.Liquid level controlled have middle water level and low water level, Its function is to control the booster pump’s start and
stop; when the water level above the water level, the booster pump can be started automatically; when the water level is
below the low water level, booster pump auto stop.
SUS304  Pure water tank(aseptic tank)
Its used to store pure water
Water tank has three water level:high level,middle level,low level, when the water level at low level the pure water pump automatical stop supply water until the water of the pure water tank water level reaching or above the middle water level can be automatically activated, restoration of water supply; water level below the middle water level the high pressure pump automatic starting the system to producing water until the water level reach the  high level, high pressure pump auto stop running.
Raw water pumps(booster pump);stainless steel centrifugal pump
To make sure the system’s water flow and pressure.Our company offer export brand booster pump like: Rich;Germany Ville;Spanish Espa.China brand booster pump like :The South Pump;Wuxi Joyoung pump
Free repair of mechanical seal pump,Efficient,Low noise,Stable and reliable performance.
Liquid level controller control the booster pump’s start and stop.
Quartz sand filter
The high-quality 304 stainless steel with a valve operating system, pipeline system, containing the manhole, hand hole, the upper and lower water distribution devices, media, pressure.
Quartz sand filter is mainly used to remove suspended matter and sediment, particle impurity. The device and other water treatment equipment, widely used in water purification process. Quartz sand filter filled with refined multilayer multipath quartz sand, anthracite, fiber ball. In room temperature operation, with acid and alkali resistance, oxidation resistance, application range of PH to 2-13.
System provide protection devices and monitoring instruments, and have automatic backwashing function, dirt and other pollutants can quickly swept away,consumpt less water
Under a certain pressure, made the liquid through the medium of contact flocculation, adsorption, retention, removing impurities, thus achieve the purpose of filtering.
Filter design should fully consider the backwashing intensity, unstable system operation causes are mechanical filter recoil design flaws, the recoil is not complete, the upper filter sand agglomerates SDI ( pollution index ) increased, causing membrane fouling. Considering the mechanical filter backwashing after put into use, filter layer surface formed in the late, impurity penetration, considering the poor effect and other factors, so the use of low flow work, in order to improve the filtering effect, reduce the impact of follow-up processing.
Activated carbon filter:
The high-quality 304 stainless steel with a valve operating system, pipeline system, containing the manhole, hand hole, the upper and lower water distribution devices, media, pressure.
Activated carbon filter is mainly used to remove organic matter and residual chlorine. Absorber built by water-based activated carbon, activated carbon filtered water into the adsorption device, adsorption device main functions:
1, Adsorption of organic matter in water part of the adsorption rate of 60%:
2, Absorption chlorine, active carbon adsorption removal of chlorine is not a simple role, but its surface as a catalyst, so full of activated carbon adsorption problem does not exist, but the loss of carbon only.
After the quartz sand filter and active carbon filter,the water basically required the water treatment plants imput water standard: SD1 ≤ 4; TDS≤400
Precision filters:
Provent the particles entering the membrane,scratched the surface of the membrane.In the normal operating condition,the filter can maintained for 3 mouth.The filter structure for fast replace.
Manufacture of high quality PVC material.Filter holder containing a fixed
The hollow ultrafiltration devices:
the use of hollow membrane system, with 304 stainless steel frame, famous film membrane components using days, Hangzhou, south of drug wash pump is stainless steel produced multi-stage pumps. Electrical automatic control AC contactor controller, comes with a flow meter, pressure gauge, automatic flush valve and so on.
Protection device: the booster pump with water before and after low water and high pressure switch, water does not prevent the system
Enough pressure is too low, and high-pressure pump to stop operation of the system. As a high-pressure pump caused the water pressure is too high, stop the booster pump power, the overpressure protection system operation.
Performance parameters:
The instrumentation and electrical control system
Include:
A, The famous electrical components
B, High and Low Voltage
C, Level control switch
D, Flowmeter
E, Pressure gauge
F, Stainless steel electrical control box
Installation Material
A, wire and cable, stainless steel stent
B, Ø32 Sanitary pipes
C, Sanitary valves
