3/5Gallon Bottle Blow Molding Machine


Volume of product:10-25L(3-5gallon)
Production capacity: 60bottles per hour
3/5Gallon Blow molding machine is widely used to produce plastic PET bottle . Like 3gallon reuse bottle, 5gallon reuse bottle and 5gallon once use bottle. You can use it to blow 5-25liter plastic bottle through change mold.

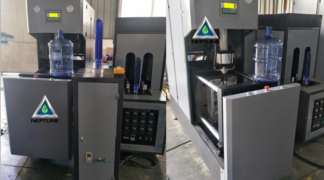

5Gallon Bottle Blow Molding Machine

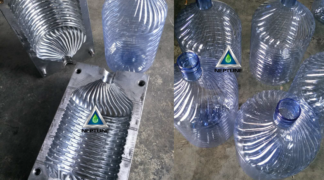

Once use 300g 5gallon bottle blower


Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain ,operation by one person .
Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
We can provide performs ,cap and various bottle molds for 5 gallon and 3gallon bottles to meet customer’s requirements.



Technique Parameter :

Volume 10L-25L(3-5Gallon)
Actual output 60-90PCS/H
Preform length 15mm-460mm
Preform inner diameter φ5mm-200mm
Max.mould plate Dimenstion(L x W) 420x500mm
Max.mould thickness 400mm
Clamping force 330KN
Mould opening stroke 380mm
Main machine (L x W x H) 218*77*196cm
Main machine weight 1000Kg
Heater (L x W x H) 237*68*165cm
Heater weight 380Kg
Power 40kw
